Design Features

AC Inputs


Two separate AC inputs – one for grid (priority #1), one for generator
    (priority #2), connect simultaneously, no need to reconfigure when different
    power sources are available.

Generator Input is specifically designed to have more tolerance for wave
    form distortion, prevents unnecessary “rejection of AC input and switch to inverter”
    by tolerating distorted wave forms that can be produced by gritty generators

Each AC input is programmable for voltage and frequency. User determines what
    the min and max thresholds are to switch from Grid or Generator to Inverter.

Generator start can be initiated by “Status Relay” contact, can be programmed
    to activate when grid is lost.


Solar Input


Connect a solar charge controller directly to the EVO TM though the Battery
    Charger external DC Input, seamlessly integrates solar charging into the
    EVO’s power system.

ONLINE Mode can be used to prioritize Batteries / Inverter over the grid, ideal
    for those wishing to operate primarily on solar power (when the grid is available,
    but might be costly).


Battery Charger


3 or 4 stage charging with Equalization (must be manually initiated).

Adaptive algorithm is used during Bulk to assess the condition of the battery.

Subsequent stages are then based on the condition of the battery rather than
    pre-set time periods for Absorption and Float. Prevents unnecessary
    charging, extends the life of batteries.

Programmable – set battery voltage thresholds to initiate charging.


Transfer Switch


Zero transfer time when switching from Inverter to Grid. When grid comes on,
    the inverter synchronizes with the wave form and then transfers instantly at
    zero crossing.

<16ms transfer when going from Grid to Inverter. When grid is lost, the transfer
    relay switches to inverter at the correct place in the wave form, the transfer takes
    less than 16ms.


Surge Capacity (Power Boost)

The EVO TM has 3X surge power

Additionally, the EVO TM has large power overload allowances available for
    long periods of time. Increased inverter capacity means you can size your
    inverter smaller to handle heavy surge loads, reducing costs.


State-of-the-Art Technology


The EVO TM operates at 165 million instructions per second producing lightning
    fast load and response times

The EVO TM is practically indestructible. It has “Bullet-Proof Intelligence” in the
    form of 9 physical points of protection monitoring being scanned up to 10,000
    times per second for adverse conditions. The EVO TM will detect fault conditions
    and initiate a healthy shutdown before any product damage can be done.

The EVO-RC remote control (sold separately) can be used to capture detailed
    EVO TM performance data. Records all detected faults and the conditions
    leading up to them.

Data is stored on a removable 16GB SD Card (in the remote). Use data to
    analyze trends for more efficient use of system resources

The EVO TM uses five temperature sensors placed throughout the unit to
    determine operation of 2 speed controlled cooling fans. Reduces unnecessary
    fan noise and energy consumption by only running when and where the
    fans are needed.tails.)

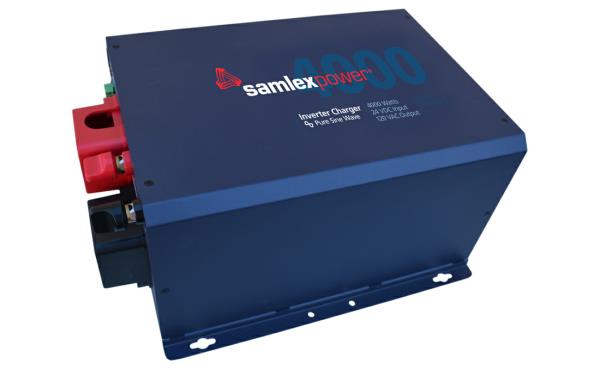

4000 Watt Pure Sine Inverter / Charger

EVO Series (120 VAC)
Model: EVO-4024

EVOLUTION TM Series Inverter/Charger

Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution TM Series inverter/chargers provide reliable AC power wherever it’s needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications.

Using state-of-the-art technology, the Samlex EVO TM inverter / charger operates at 165 million instructions per second with lightning fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10,000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments.

The EVO-4024 is a 4000 Watt Pure Sine inverter, 24 VDC input, 120 VAC output, 50 /  60 Hz. It intelligently integrates a 110 Amp 4 stage Battery Charger and a 70 Amp Transfer Relay into an advanced and affordable off-grid power solution.


(EVO-RC remote control sold separately. See page for EVO-RC for product de
Applications

Boats,

RVs, trucks, specialty vehicles

Alternative energy, off-grid,

Cabins, remote locations,

Areas with unreliable utility power

Back-up, UPS

Emergency power applications

Solar power systems
Samlex EVO-4024
Inverter Charger Pure Sine Wave Solares
EVO-4024 Samlex America
pure sine wave solar Inverter - Charger
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Continuous Output Power
4000 Watts
Surge Output Power
12000 Watts (<1 ms) 8000 VA (<100 ms)
Output Voltage
120 VAC ± 5%
Output Frequency
60 Hz ± 0,1
Type of Output Waveform
Pure Sine Wave
Total Harmonic Distortion
< 5% of Output Waveform THD
Peak Efficiency
> 94%
Nominal DC Input Voltage
24 VDC
Maximum Input Current
266 A
DC Input Current at No Load
Normal 25W; Power Saving Mode: <8W
Working environment - Cooling
Indoor use - Temperature controlled fans
Overload Shutdown
**
Over Temperature Shutdown
**
Reverse Polarity on DC Input Side
External / internal DC sides fuses
Weight (kg)
29
Dimensions (W x D x H)
325 x 426 x 207mm
Display / Led
Power, Overload, Over Temperature **
Compliance Safety
ETL listed to UL Standards RoHS2; EMI / EMC compliant with FCC (see data sheet)
Wired Remote Control with LED LED Display Wired ON / OFF Control
EVO-RC (sold separately)
(i) By switching external contact
(ii) By switching external 12V / 24V signal
All specifications given above are at ambient temperature of 25°C
* Specifications are subject to change without notice
Especificaciones técnicas EVO-4024
Inversores solares Samlex America onda senoidal pura modificada Quito Guayaquil Cuenca Ecuador Sudamerica
Inverters pure sine wave modified South America Ecuador
CodeSolarEnergia S. A.  Comunicacion Desarrollo Tecnologia Energia Solar
Quito, Ecuador, Sudamerica
Calefaccion piscinas duchas saunas turcos
Energias Renovables America Latina
Renewable Energy South America
Ecuador
Cuba
Costa Rica
Colombia
Chile
Brasil Brazil
Bolivia
Argentina
Guayana Francesa
Haiti
Honduras
Guatemala
Guadalupe
Estados Unidos América
Mexico
España
Nicaragua
El Salvador
Panama
Paraguay
Peru
Puerto Rico
Republica Dominicana
Surinam
Uruguay
Venezuela
Paneles fotovoltaicos Energías Renovables Ecuador Sudamérica
Erneuerbare Energien Südamerika
Inversor 3000 120 24 onda senoidal pura solar fotvoltaico
Espanol Spanish Spanisch Ecuador
Inversor Samlex PST 3000W 12V 24V 48V Onda Sinusoidal Senoidal Pura Modificada
charge controll solar ffotovoltaico
control remoto RC 300 Inversor Samlex inverter
** PROTECTIONS / ALARMS: Battery Low Voltage Alarm and Low / Over Voltage Shut Down; Shut Down under Input; Over Current, Output Over Current, Output Overload and Output Short; Transformer and Heat Sink Overheat Shut Down; Immunity Against Conducted Electrical Transients in Vehicles
Power Boost; AC Input from Grid / Generator; Transfer Relay and Time; Internal Battery  Charger; Battery Temperature Compensation; External Battery Charger (Solar Charge Controller) and other data: please consult Data Sheet.
