Inversores
solares DC AC
inversor onda senoidal pura Samlex America
CODESOLAR
ENERGIA S.A.
Samlex EVO-4024
Inverter Charger Pure Sine Wave Solares
4000 Watt Pure Sine Inverter / Charger

EVO Series (120 VAC)
Model: EVO-4024

EVOLUTION TM Series Inverter/Charger

Pure sine wave inverter, adaptive battery charger, transfer relay – All in ONE unit. Samlex Evolution TM Series inverter/chargers provide reliable AC power wherever it’s needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications.

Using state-of-the-art technology, the Samlex EVO TM inverter / charger operates at 165 million instructions per second with lightning fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10,000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments.

The EVO-4024 is a 4000 Watt Pure Sine inverter, 24 VDC input, 120 VAC output, 50 /  60 Hz. It intelligently integrates a 110 Amp 4 stage Battery Charger and a 70 Amp Transfer Relay into an advanced and affordable off-grid power solution.


(EVO-RC remote control sold separately. See page for EVO-RC for product de
EVO-4024 Samlex America
pure sine wave solar Inverter - Charger
Solar Inverter Charger 4000W 24V Samlex EVO 4024 pure sine wave
Solar Quito Ecuador Sudamerica South America Sudamerika
Espanol Spanish Spanisch Ecuador
English Ingles Englisch
ESC
Solar Inverter Charger 4000W 24V Samlex EVO 4024 pure sine wave Ecuador South America
Design Features

AC Inputs


Two separate AC inputs – one for
   grid (priority #1), one for generator
   (priority #2), connect simultaneously,
   no need to reconfigure when different
   power sources are available.

Generator Input is specifically designed
   to have more tolerance for wave
   form distortion, prevents
   unnecessary “rejection of AC input
   and switch to inverter” by
   tolerating distorted wave forms that can
   be produced by gritty generators

Each AC input is programmable for
   voltage and frequency. User determines
   what the min and max thresholds are
   to switch from Grid or Generator
   to Inverter.

Generator start can be initiated by
   “Status Relay” contact, can be
   programmed to activate when grid is lost.


Solar Input


Connect a solar charge controller directly
   to the EVO TM though the Battery
   Charger external DC Input, seamlessly
   integrates solar charging into the
   EVO’s power system.

ONLINE Mode can be used to
   prioritize Batteries / Inverter over the
   grid, ideal for those wishing to
   operate primarily on solar power (when
   the grid is available, but might be costly).


Battery Charger


3 or 4 stage charging with
   Equalization (must be manually initiated).

Adaptive algorithm is used during Bulk
   to assess the condition of the battery.

Subsequent stages are then based on
   the condition of the battery rather than
   pre-set time periods for Absorption
   and Float. Prevents unnecessary
   charging, extends the life of batteries.

Programmable – set battery
   voltage thresholds to initiate charging.


Transfer Switch


Zero transfer time when switching
   from Inverter to Grid. When grid comes
   on, the inverter synchronizes with the
   wave form and then transfers instantly
   at zero crossing.

<16ms transfer when going from Grid
   to Inverter. When grid is lost, the
   transfer relay switches to inverter at
   the correct place in the wave form,
   the transfer takes less than 16ms.


Surge Capacity (Power Boost)

The EVO TM has 3X surge power

Additionally, the EVO TM has large
   power overload allowances available
   for long periods of time. Increased
   inverter capacity means you can size
   your inverter smaller to handle heavy
   surge loads, reducing costs.


State-of-the-Art Technology


The EVO TM operates at 165
   million instructions per second
   producing lightning fast load and
   response times

The EVO TM is practically indestructible.
   It has “Bullet-Proof Intelligence” in the
   form of 9 physical points of
   protection monitoring being scanned up
   to 10,000 times per second for
   adverse conditions. The EVO TM will
   detect fault conditions and initiate a
   healthy shutdown before any
   product damage can be done.

The EVO-RC remote control
   (sold separately) can be used to
   capture detailed EVO TM
   performance data. Records all
   detected faults and the conditions
   leading up to them.

Data is stored on a removable
   16GB SD Card (in the remote). Use
   data to analyze trends for more
   efficient use of system resources

The EVO TM uses five temperature
   sensors placed throughout the unit
   to determine operation of 2
   speed controlled cooling fans.
   Reduces unnecessary fan noise
   and energy consumption by only
   running when and where the fans
   are needed.tails.)
Applications

Boats,

RVs, trucks, specialty vehicles

Alternative energy, off-grid,

Cabins, remote locations,

Areas with unreliable utility power

Back-up, UPS

Emergency power applications

Solar power systems
charge controll solar ffotovoltaico
charge controll solar ffotovoltaico
charge controll solar ffotovoltaico
** PROTECTIONS / ALARMS: Battery Low Voltage Alarm and Low / Over Voltage Shut Down; Shut Down under Input; Over Current, Output Over Current, Output Overload and Output Short; Transformer and Heat Sink Overheat Shut Down; Immunity Against Conducted Electrical Transients in Vehicles
Power Boost; AC Input from Grid / Generator; Transfer Relay and Time; Internal Battery  Charger; Battery Temperature Compensation; External Battery Charger (Solar Charge Controller) and other data: please consult Data Sheet.
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Technical specifications EVO-4024
Continuous Output Power
4000 Watts
Surge Output Power
12000 Watts (<1 ms) 8000 VA (<100 ms)
Output Voltage
120 VAC ± 5%
Output Frequency
60 Hz ± 0,1
Type of Output Waveform
Pure Sine Wave
Total Harmonic Distortion
< 5% of Output Waveform THD
Peak Efficiency
> 94%
Nominal DC Input Voltage
24 VDC
Maximum Input Current
266 A
DC Input Current at No Load
Normal 25W; Power Saving Mode: <8W
Working environment - Cooling
Indoor use - Temperature controlled fans
Overload Shutdown
**
Over Temperature Shutdown
**
Reverse Polarity on DC Input Side
External / internal DC sides fuses
Weight (kg)
29
Dimensions (W x D x H)
325 x 426 x 207mm
Display / Led
Power, Overload, Over Temperature **
Compliance Safety
ETL listed to UL Standards RoHS2; EMI / EMC compliant with FCC (see data sheet)
Wired Remote Control with LED LED Display Wired ON / OFF Control
EVO-RC (sold separately)
(i) By switching external contact
(ii) By switching external 12V / 24V signal
* All specifications given above are at ambient temperature of 25°C
* Specifications are subject to change without notice
charge controll solar ffotovoltaico
charge controll solar ffotovoltaico
Samlex Inversores Cargadores MENU

  Inversores Onda Sinusoidal Pura

     Samlex PST
     Inversores Onda
     Sinusoidal Pura

     Samlex SSW
     Inversores Onda
     Sinusoidal Pura

  Inversores Cargadores Onda
  Sinusoidal Pura

     Samlex EVO
     Inversores Cargadores Onda
     Sinusoidal Pura

>>>   Samlex EVO-4024
         Inverter Charger
         Pure sine wave

          Control Remote EVO RC PLUS
          Remote Control
          for EVO Inverters Chargers Samlex

Espanol Spanish Spanisch Ecuador Quito Guayaquil
Piletas Parques Email CodeSolar
Paneles fotovoltaicos Energias Renovables Ecuador Sudamerica
Erneuerbare Energien Südamerika
Renewable Energy South America
Ecuador
Cuba
Costa Rica
Colombia
Chile
Brasil Brazil
Bolivia
Argentina
Guayana Francesa
Haiti
Honduras
Guatemala
Guadalupe
Estados Unidos América
Mexico
España
Nicaragua
El Salvador
Panama
Paraguay
Peru
Puerto Rico
Republica Dominicana
Surinam
Uruguay
Venezuela
Noticias Energia Solar Sudamerica News Solar Energy Ecuador South America Nachrichten Sonnenenergie Sudamerika
Noticias energias Renovables Solares South America Ecuador
WhatsApp Mensaje
Precios ofertas proformas distribuidor
CodeSolarEnergia S. A.
Comunicacion Desarrollo Tecnologia Energia Solar
Quito, Ecuador, Sudamerica
Inversores inverters convertidorees transformadores cargadores chargers Wechselrichter
inverters carga control regulador baterias litio selladas dc corriente directa continua alterna
Espanol Spanish Spanisch Ecuador
English Ingles Englisch

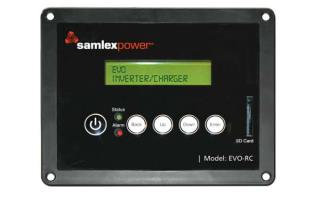

Control remoto para inversores / cargadores EVO TM serie F
