Design Features

•    Free remote control with LCD Display included!

•    High performance, high surge power

•    True sine wave output for sensitive loads

•    Economically priced

•    Samlex “Soft Start” & “Low Interference” technology

•    Universal Circuit Protection: thermal, battery, overload, short circuit & earth fault

•    Cool surface technology

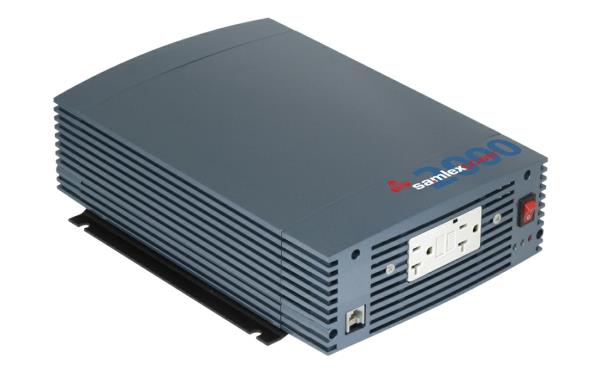

2000 Watt Pure Sine Wave Inverter
SSW Series
Model: SSW-2000-12A

Ideal for powering office equipment, television, DVD, Video Games, battery chargers and other sensitive loads from your car, truck, boat, RV, or Solar System batteries

•    Compact and lightweight

•    High Surge: 2X Continuous Power

•    2 GFCI protected outlets
Applications

•    Service vehicles

•    Mobile Offices

•    Boats

•    Recreation Vehicles, Camping

•    Telecommunication

•    Field work / Construction sites

•    Solar power systems

•    Emergency backup power

•    Home electronics: TV, VCR, video games

•    Computers, printers
Samlex SSW-2000-12A
Inversores Onda Sinusoidal Pura Solares
SSW 2000 12A Samlex America
pure sine wave solar Inverter
Inverter SSW 2000 W 12 V 120 VAC Samlex pure sine wave
Inverter SSW 2000 W 12 V 120 VAC Samlex pure sine wave
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversores Invertidores Cargadores Inverters Chargers Wechselrichter Ladegerate Trip Lite
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Inversor Invertidor Cargador Inverter Charger Wechselrichter Ladegerat APS UPS
Continuous Output Power
2000 Watts
Surge Output Power
4000 Watts (< 1 sec)
Output Voltage
115 VAC (± 5 VAC)
Output Frequency
60 Hz ± 1Hz
Type of Output Waveform
Pure Sine Wave
Total Harmonic Distortion
< 3% of Output Waveform
Peak Efficiency
> 90%
Nominal DC Input Voltage
12 VDC
Maximum Input Current
200 A
DC Input Current at No Load
< 1.1A
Working environment - Cooling
Indoor use - Temperature controlled fan
Overload Shutdown
Yes
Over Temperature Shutdown
Yes
Reverse Polarity on DC Input Side
External / internal DC sides fuses
Weight (kg)
4,0
Dimensions (W x D x H)
222 x 333 x 89 mm
Display / Led
REMOTE CONTROL SSW-R1-12B
Compliance Safety
Listed to UL Standard UL-458
Wired Remote Control with LED LED Display Wired ON / OFF Control
SSW-R1-12B (included)
(i) By switching external contact
(ii) By switching external 12V / 24V signal
All specifications given above are at ambient temperature of 25°C
* Specifications are subject to change without notice
Especificaciones técnicas SSW-2000-12A
